Understand the limit switch on garage door systems, how it works, common issues, and how to fix or replace it.
When your garage door refuses to open fully or reverses before closing, it’s often more than just a minor inconvenience; it may point to a faulty limit switch on garage door systems. This small but essential component determines where your garage door should stop during opening and closing. When misaligned or damaged, it can disrupt the entire operation, leading to premature wear, safety risks, or complete door failure.
At Premium Garage Door Repair, we frequently handle service calls where a malfunctioning limit switch is the root cause of erratic garage door behavior. Knowing how the limit switch functions and the signs it’s starting to fail can help homeowners avoid unnecessary repair costs and extend the lifespan of their garage door system. If your door is acting up, it might be time to inspect the switch and call in the pros for a reliable solution.

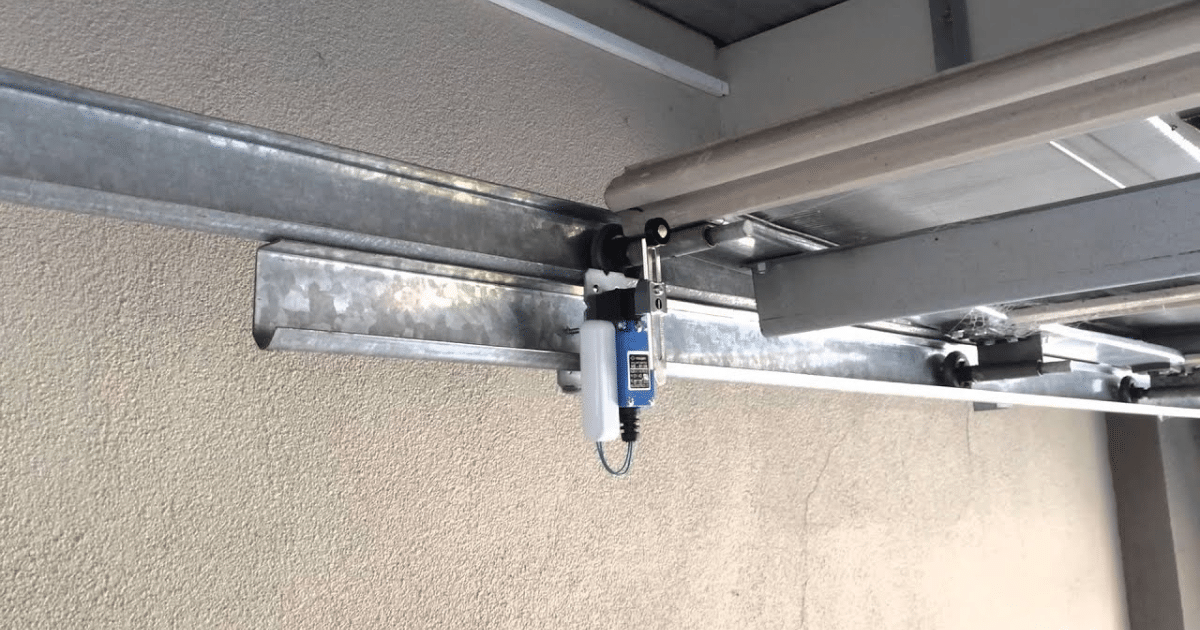

What Is a Limit Switch on a Garage Door?
The limit switch on garage door openers is a control mechanism that tells the motor when to stop running during the opening or closing cycle. Without it, the door wouldn’t know where to stop, which can spell trouble.
This component is programmed or adjusted to match the full range of your garage door’s movement. When set correctly, the door stops gently at the top when fully open and settles firmly at the bottom when closed. A poorly adjusted or failing switch, on the other hand, can cause the door to slam, reverse, or get stuck mid-track.
The limit switch works as a stop signal for your door’s motor, helping avoid overtravel, physical strain, and damage to the entire opener system.
Mechanical vs. Electronic Limit Switches
Not all limit switches are created equal. Older garage door models often use mechanical limit switches, simple, screw-style adjusters that physically trigger a stop when touched by a moving part. These require manual calibration and can wear out over time due to repeated use.
Newer openers feature electronic or digital limit switches. In some models, these are usually adjusted through the opener’s control panel or even via smart apps. While more precise, they can still fail due to software glitches, electrical surges, or calibration errors.
At Premium Garage Door Repair, we service both types. Whether your home uses an older mechanical system or a state-of-the-art opener, our technicians are trained to identify, adjust, or replace your limit switch accurately and safely.
Common Signs Your Limit Switch Is Failing
A malfunctioning limit switch on garage door systems doesn’t always break outright—it often shows subtle signs before completely failing. Here’s what to watch for:
- The door won’t close fully – It may stop a few inches above the ground or refuse to budge past a certain point.
- The door reverses suddenly – Even without an object in the way, the door may back up mid-close.
- The motor keeps running – You hear the motor humming even after the door stops moving.
- The door won’t open all the way – It rises only partially before stalling.
These signs suggest that your limit switch may be misadjusted, worn out, or disconnected, and it’s time to take a closer look.
Safety Risks and System Strain
Ignoring these symptoms can lead to bigger issues. If your limit switch on garage door openers is faulty, several things can go wrong:
- Motor overrun – A continuously running motor strains the system and may eventually burn out.
- Door misalignment – Doors that don’t stop where they should can twist tracks or become uneven.
- Physical damage – A door that slams into the floor or fails to open high enough can damage your garage floor, vehicles, or even your garage structure.
That’s why Premium Garage Door Repair always recommends early intervention. Catching these issues quickly helps protect your door, motor, and most importantly, your safety.
DIY Troubleshooting Tips (When It’s Safe to Try)
Some minor issues with the limit switch on garage door openers can be safely addressed without professional tools. Here’s what you can check:
Consult the user manual
Your opener’s model may have specific limit adjustment procedures.
Locate the limit screws or panel.
Mechanical switches typically have “up” and “down” screws, while electronic units use digital buttons or touch panels.
Make small changes
Turn the limit screw gently or press the button in small increments, then test your door after each adjustment.
Necessary: If the door behaves erratically, the motor runs continuously, or the opener emits unusual sounds, stop immediately and call a professional. Continuing may cause further damage.
Warning Signs You Shouldn’t Ignore
Some symptoms indicate a more serious or dangerous issue. If you notice any of the following, it’s time to call Premium Garage Door Repair:
- Burning smells or sparks – These could signal electrical shorts or internal damage.
- Grinding noises – Often a sign of worn mechanical parts or misaligned components.
- Unpredictable behavior – Doors opening or closing randomly without input can indicate a wiring or circuit problem tied to the limit switch.
Never attempt to repair electrical faults or disassemble the motor casing yourself. These jobs require professional tools and training.
When to Repair vs Replace the Limit Switch
Not every issue means the entire limit switch on garage door systems needs replacement. Sometimes, a simple recalibration or tightening of screws is enough.
However, replacement may be necessary when:
- Internal wiring is frayed or shorted out
- Mechanical contacts are worn or rusted
- Digital components no longer respond to input
The technicians at Premium Garage Door Repair are trained to inspect your system thoroughly, identify the source of the issue, and recommend the most cost-effective solution. We pride ourselves on honest assessments and only replace components when truly necessary.
How Premium Garage Door Repair Fixes Limit Switch Problems
When you call Premium Garage Door Repair for a limit switch problem, here’s what you can expect:
Inspection
We begin with a complete diagnostic of your garage door system, including the opener and tracks.
Testing
Our technicians test the behavior of your door, checking how it responds to control inputs.
Adjustment
We’ll carefully reset the limit settings and retest the door’s motion if recalibration is needed.
Replacement (if necessary)
If the switch is physically damaged or unresponsive, we’ll install a new one that matches your system.
Final testing
We ensure your door opens, closes, and stops exactly as it should.
With years of experience and familiarity with all opener types, Premium Garage Door Repair offers precision service, same-day availability, and safety-first repairs.
Preventing Future Problems with Routine Maintenance
Routine garage door tune-ups can avoid many limit switch failures. During a standard inspection, we test the full range of door motion, recalibrate the limit switch on garage door openers, and ensure all safety mechanisms work properly.
By investing in annual service, you avoid the stress of emergency repairs and extend the life of your entire system.
Premium Garage Door Repair offers affordable maintenance packages that include:
- Limit switch testing and adjustment
- Motor and track lubrication
- Safety sensor alignment
- Full system diagnostics
It’s a small investment that pays off in reliability, safety, and peace of mind.
FAQ: Limit Switch on Garage Door
How do I reset my garage door limit switch?
First, disconnect the opener from power to reset your garage door limit switch. Locate the limit adjustment screws, usually found on the motor housing. Using a flathead screwdriver, turn the up or down screw in small increments. Test the door after each adjustment until it opens and closes correctly.
Where is the garage door limit switch located?
The garage door limit switch is typically on the side or rear of the opener’s motor unit, near the light cover. It’s usually marked with “up” and “down” labels and adjusted with a flathead screwdriver. This switch controls how far the garage door travels when opening or closing.
How to adjust the limit switch?
To adjust a garage door limit switch, use a flathead screwdriver to turn the “up” or “down” adjustment screws on the motor housing. Turning the screw clockwise shortens the door travel, while counterclockwise extends it. Always test the door after each adjustment to ensure safe, proper operation.
What is the purpose of a limit switch on a door?
A garage door limit switch sets the maximum distance the door can open or close. It prevents the door from going too far, which can cause damage or misalignment. Proper limit switch settings ensure the door fully closes for security and fully opens for vehicle clearance.
How does a garage door limit switch work?
A garage door limit switch uses internal sensors and screws to control the door’s travel distance. The switch signals the motor to stop running when the door reaches the set limit. This mechanism protects the door and opener from overextending and ensures smooth, reliable operation during daily use.
Conclusion
The limit switch on garage door systems ensures your door opens and closes at the right time. When it malfunctions, your door may stop short, run too far, or become unresponsive, posing a safety risk to your household. These symptoms are often overlooked until damage occurs. That’s why early inspection and adjustment prevent bigger, more expensive issues later.
If your garage door isn’t functioning as expected, the limit switch on your garage door may be the root cause. This small yet essential part can make a big difference in safety and performance. We specialize in accurate diagnostics and same-day service at Premium Garage Door Repair. Contact us today for expert repairs and dependable results that keep your garage door running smoothly and safely.
